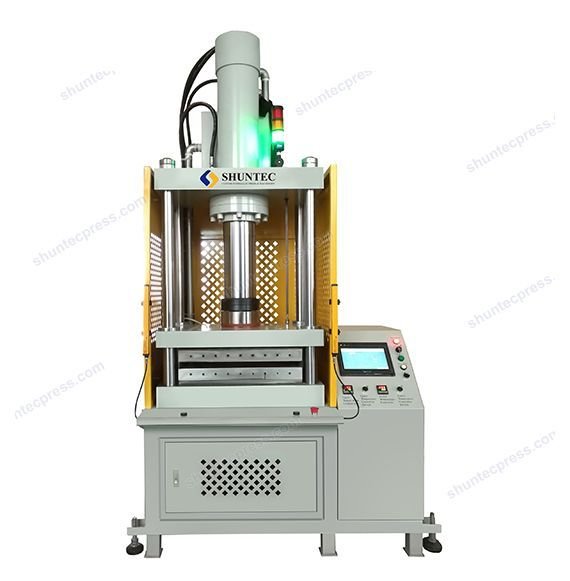

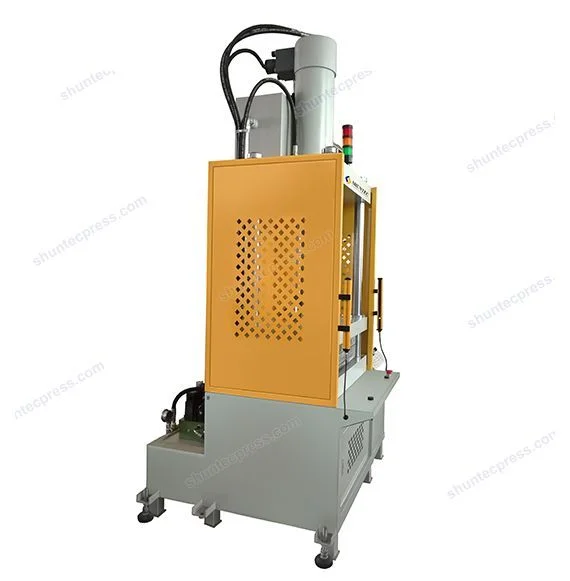

Heated Platen Press
Precision Heating & Pressure for High-Quality Thermoforming
Price : ＄12,000 - ＄56,000
Shuntec’s heated platen presses can be designed in multi-types of frame construction such as 4-post, 2-post, C frame, and benchtop types. The presses are heated with either electrical heating or hot oil heating, with standard or custom platen sizes for heating up to a required temperature. The heated platens are precision machined from one thick solid piece of quality steel or stainless steel and can be installed on both the bottom platen and the moving platen.
| Parameter | Details |
|---|---|
| Warranty Commitment | 3-year full machine warranty + lifetime technical support |
| Global After-Sales | Overseas localized service teams (Europe/USA/Southeast Asia), 24/7 multilingual support (EN/DE/JP/CN) |
| Delivery Lead Time | 30-55 working days (standard models) / 60-90 working days (customized models) |
| Logistics Support | Full coverage of EXW/FOB/CIF/DDP terms, hazardous material packaging provided (IP67 protection) |
Contact a Trusted Heated Platen Press Manufacturer Today
Send Inquiry- Machine Video
- Machine Highlight
- Machine Specifications
- Machine Options
Machine Video
Machine Highlight
• Multi-types of frame structure to meet your specific applications
• Uniform heat distribution across the entire heated platens
• Easy and precise temperature control
• Heated platen presses can be customized to your specifications
• Superior rigidity and bed to platen parallelism
• Precision-guided moving slide (platen)
• Fast, easy and safe setup and operation
• Years of maintenance-free and reliable operation.
Heated platen press, also widely known as hot press machines, can be supplied for lamination, bonding, curing, or molding a variety of materials. Our heated platens are precision machined from one thick solid piece of quality steel or stainless steel and can be installed on both the bottom platen and the moving platen. Proper special insulation material is positioned between the press bolsters and the heated platens, to maintain uniform heat distribution across the entire heated platens. A water cooling option is available so that the workpiece could be manipulated by hand.
Each electrically heated platen press in Shuntec has PID temperature controllers for easy setting and displaying temperature. The heated platen can be divided into multi-temperature zones each monitored with a digital ammeter for easy temperature fault detection. The dwell time is programmable from .1 to 999 hours. All heated platen presses can be customized-made to your specifications with specific tonnage, stroke, daylight, as well as special exhaust time and times of exhaust in one cycle. With these features, Shuntec’s electrically heated platen press is ideal for the bonding friction material used in vehicles.
All heated platen hydraulic press machines in Shuntec are built with tough quality standards to ensure years of maintenance-free and reliable operation.
Shuntec offers several standard 4-post heated platen presses, technical parameters described in the right navigation bar. These standardized 4-post heated platen hydraulic press systems can be modified with specific tonnage, stroke, shut height, and bed size to meet your special need.
Machine Specifications
Product Datas
| Applicable Industries: | Hot forming,
compressing, molding, etc |
Certification: | CE/UL/ISO |
| Power
Supply: |
380V/220V/415V/480V
optional |
Warranty: | 18 months |
| Customizable: | Highly customized to your requirements | Aftersales Service: | Field installation/maintenance/repair service,
Commissioning and training, Online support, Video technical support, Free spare parts |
| Production Lead-time: | About 30~55 workdays | Payment Term: | T/T |
| Packing: | Wooden package
for sea transport |
Delivery Term: | EXW, FOB,CFR,CIF,DDU |
Technical Parameters
| Description | Shuntec-P06 30T | Shuntec-P06 50T | Shuntec-P06 100T | Shuntec-P06 200T | Shuntec-P06 500T |
| Nominal Force | 300 KN | 500 KN | 1000 KN | 2000 KN | 5000 KN |
| Structure | 4 post press | 4 post press | 4 post press | 4 post press | 4 post Press |
| Cylinder Stroke | 300 mm | 300 mm | 400 mm | 500 mm | 650 mm |
| Open Height | 500 mm | 500 mm | 600 mm | 750 mm | 900 mm |
| Heated Plated
Sizes |
600*400 mm | 600*400 mm | 700*600 mm | 800*650 mm | 950*700 mm |
| Table Height | 780 mm | 780 mm | 780 mm | 800 mm | 800 mm |
| Heating Temperature | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ |
| Closing Speed | 140 mm/s | 140 mm/s | 120 mm/s | 100 mm/s | 120 mm/s |
| Pressing Speed | 25 mm/s | 25 mm/s | 20 mm/s | 18 mm/s | 18 mm/s |
| Return Speed | 110 mm/s | 110 mm/s | 100 mm/s | 80 mm/s | 80 mm/s |
| Motor | 4 Pole, 5.5 KW | 4 Pole, 7.5 KW | 4 Pole, 11 KW | 4 Pole, 15.5 KW | 4 Pole, 22 KW |
| Power Supply | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ |
| System Pressure | 18 Mpa | 18 Mpa | 20 Mpa | 21 Mpa | 24 Mpa |
| Approx. Weight | 2.5 ton | 4.5 Ton | 7.5 Ton | 9 Ton | 11 Ton |
| Approx. Size | 800*700*2070 mm | 850*780*2180 mm | 950*850*2300 mm | 1150*980*2560 mm | 1350*1150*2760 mm |
Machine Options
• Electrical heating or oil heating optional
• Water cooling optional
• Top-mounted hydraulics
• Pneumatic safety gates on loading & unloading side
• Interlocked, hinged guards on 3 sides
• Portable operator console
• Pneumatic safety rachet
• Color HMI
• Linear position sensor
• Load cell
• Automatic tie bar lubrication
