H-Frame Hydraulic Press
Compact & Cost-Effective Solution for Short-Stroke Forming
Price : ＄12,000 - ＄56,000
As a leading H-Frame Press manufacturer in China, Shuntec’s H-Frame Hydraulic Press is engineered for high-tonnage industrial applications requiring short working strokes, compact bed size, and precision performance.
Ideal for processes like coining, embossing, stamping, shallow drawing, crimping, bending, and pressing, this press delivers unmatched efficiency in space-constrained environments.
| Industry | Typical Processes | User Benefits |
|---|---|---|
| Automotive | Driveshaft assembly, hub bearing preload | ✔️ Tooling flexibility: Compatible with 10+ shaft diameters. ✔️ Rapid setup: Tooling change <3 minutes. ✔️ High repeatability: Precision alignment for mass production. |
| Aerospace | Titanium alloy tube expansion, composite forming | ✔️ Ultra-precise control: Pressure accuracy ±0.5%. ✔️ Material integrity: Wall thickness uniformity ≥98%. ✔️ Lightweight optimization: Ideal for aerospace-grade alloys. |
| Metalworking | Long-profile straightening, special-shaped punching | ✔️ Heavy-duty capacity: Horizontal force up to 2000T. ✔️ Large-scale handling: Supports 12m-long workpieces. ✔️ Versatile tooling: Adapts to complex geometries (e.g., channels, brackets). |
| Electronics | Connector crimping, PCB component pressing | ✔️ Delicate force control: Prevents component damage (±1% tolerance). ✔️ Compact footprint: Fits small assembly lines. ✔️ High-speed cycles: 30% faster than C-frame presses. |
| Jewelry | Precision coining, 3D embossing | ✔️ Micro-tonnage control: 0.1T incremental adjustment. ✔️ Surface finish: Zero-scratch operation. ✔️ Custom dies: Compatible with intricate patterns. |
| Parameter | Details |
|---|---|
| Warranty Commitment | 3-year full machine warranty + lifetime technical support |
| Global After-Sales | Overseas localized service teams (Europe/USA/Southeast Asia), 24/7 multilingual support (EN/DE/JP/CN) |
| Delivery Lead Time | 30-55 working days (standard models) / 60-90 working days (customized models) |
| Logistics Support | Full coverage of EXW/FOB/CIF/DDP terms, hazardous material packaging provided (IP67 protection) |
Contact a Trusted H-Frame Hydraulic Press Manufacturer Today
Send Inquiry- Machine Highlight
- Machine Specifications
- Machine Options
Machine Highlight
• Precise level of ram guidance
• High accuracy of repeatability
• Modular design, customize to your specifications
• Compact design, small footprint
• Fast, easy and safe setup and operation
• Years of maintenance-free and reliable operation.
Nominal force output ranges in tonnage from 100 to 1000 tons, with a bed size of up to 28 front to back, and the fully configurable specs for speed, stroke, daylight, and shut height. The heavy welded and rib-reinforced frame body is extremely rigid and helps minimum deflection to provide high rigidity and durability. Well-forged and precise-polished heavy-duty cylinders perform highly reliable when the machines running at the high load condition. A 4-rod guided ram to ensure the accuracy of repeatability. Shuntec H frame presses are typically best suited for stamping, pressing, and forming jewelry, as well as embossing gold and silver.
For operations requiring heat and/or additional safety features, we can also supply electrically heated platens and a variety of safety equipment to meet your need. Explore the possibilities with Shuntec now!
Machine Specifications
Technical Parameters
Detailed H-Frame Hydraulic Press Specifications (SHUNTEC-P04 Series)
| Specification | SHUNTEC-P04 100T | SHUNTEC-P04 200T | SHUNTEC-P04 300T | SHUNTEC-P04 500T | SHUNTEC-P04 1000T |
|---|---|---|---|---|---|
| Nominal Force | 1000 KN | 2000 KN | 3000 KN | 5000 KN | 10000 KN |
| Structure | H Frame Press | ||||
| Cylinder Stroke | 110 mm | 150 mm | 150 mm | 150 mm | 200 mm |
| Open Height | 310 mm | 350 mm | 400 mm | 450 mm | 500 mm |
| Bed Table | 430×430 mm | 520×500 mm | 560×560 mm | 710×640 mm | 750×750 mm |
| Table Height | 780 mm | 780 mm | 780 mm | 800 mm | 800 mm |
| Closing Speed | 120 mm/s | 120 mm/s | 120 mm/s | 120 mm/s | 100 mm/s |
| Return Speed | 110 mm/s | 110 mm/s | 110 mm/s | 90 mm/s | 80 mm/s |

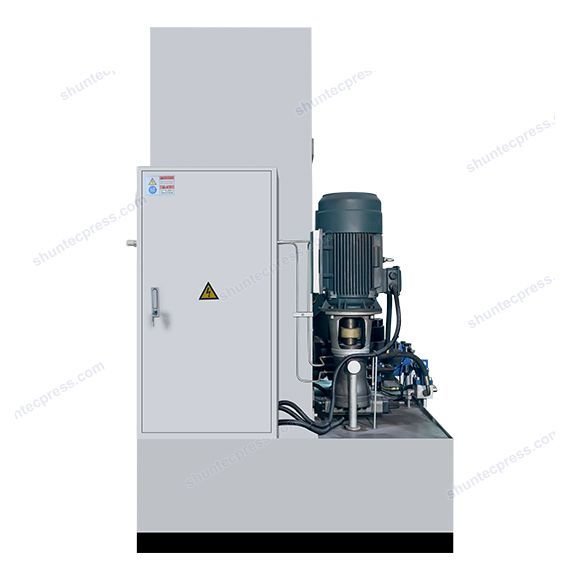

| Motor | 4 Pole, 4 KW | 4 Pole, 5.5 KW | 4 Pole, 7.5 KW | 4 Pole, 15 KW | 4 Pole, 22 KW |
| Power Supply | 3Phase, 220/380/415/480VAC, 50/60HZ | ||||
| System Pressure | 13 Mpa | 15 Mpa | 20 Mpa | 21 Mpa | 24 Mpa |
| Machine Weight | 2 Ton | 4 Ton | 7.5 Ton | 13 Ton | 17 Ton |
| Machine Size | 980×1150×1930 mm | 1130×1120×2180 mm | 1260×1340×2340 mm | 1480×1520×2400 mm | 1750×1950×2500 mm |
Machine Options
• Servo-hydraulic actuation
• Anti-tie-down, anti repeat controls with ring guards
• Interlocked, hinged guards on sides
• Hydraulic center ejection
• Portable operator console
• Automatic pneumatic safety door
• Bed shuttles for simplified tool loading and unloading
• Color HMI
• Linear position sensor
• Load cell
