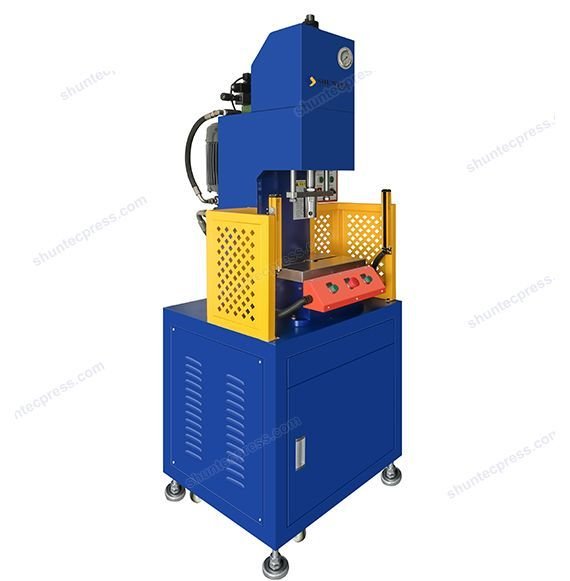

Benchtop Press
Compact & User-Friendly Solution for Small-Scale Metal Forming
Price : ＄3000 - ＄16,000
Shuntec’s elegant benchtop press featured safety, cost-efficient, and ease of use. Our benchtop hydraulic presses are extremely flexible machinery equipment that can be used as the independent tabletop press machine, or as integration into the production line.
| Industry | Typical Processes | User Benefits |
|---|---|---|
| Automotive | – Small bushing/bearing insertion – Precision fastener assembly |
– Compact, space-saving design – Quick setup and changeover – Consistent pressing force |
| Electronics | – Delicate component assembly – Connector insertion – Light forming |
– Precise force control – Minimal vibration – Ideal for sensitive parts |
| Medical | – Small medical device assembly – Calibration and testing – Press-fitting components |
– Clean operation (often oil-free) – High repeatability for strict quality standards – Easy to integrate with cleanrooms |
| General Manufacturing | – Prototyping – Light stamping or punching – Small-scale forming |
– Low maintenance requirements – Easy operation and training – Cost-effective for low to medium production volumes |
| Parameter | Details |
|---|---|
| Warranty Commitment | 3-year full machine warranty + lifetime technical support |
| Global After-Sales | Overseas localized service teams (Europe/USA/Southeast Asia), 24/7 multilingual support (EN/DE/JP/CN) |
| Delivery Lead Time | 30-55 working days (standard models) / 60-90 working days (customized models) |
| Logistics Support | Full coverage of EXW/FOB/CIF/DDP terms, hazardous material packaging provided (IP67 protection) |
Contact a Trusted Benchtop Press Manufacturer Today
Send Inquiry- Machine Video
- Machine Highlight
- Machine Specifications
- Machine Options
Machine Video
Machine Highlight
Compares to 2-post press, 4-post press, and c-frame press, Shuntec’s benchtop presses or tabletop presses are much impressed with compact benchtop size, and user-friendly features. Our benchtop presses can be designed with flexible driven options, such as air source, air hydraulic source, fully electrical source, hydraulic source, and the servo-hydraulic source. This makes our benchtop presses extremely flexible fitting into any type of production line, such as riveting units. We could provide our customers with custom benchtop press solutions, competitive prices, and life-long engineering support and service. Each benchtop press built in Shuntec is inspected with our tough quality standards to ensure years of maintenance-free and reliable operation.
Advantages of Shuntec-Pro Benchtop Presses:
• Three-sides access for convenient loading and unloading of dies or tools, as well as easy die maintenance and adjustments
• Precision-guided moving slide (platen)
• Easy evacuation of scrap metal and finished parts
• Less footprint
• Modular design, customize to your specifications
• Fast, easy and safe setup and operation
• Years of maintenance-free and reliable operation.
Shuntec offers several standard benchtop presses, and technical parameters described in the right column bar. These standardized benchtop press systems can be modified with specific tonnage, stroke, shut height, and bed size to meet your special need.
Machine Specifications
Product Datas
| Applicable Industries: | Assembly, press fitting,
press mounting, riveting, deep drawing, etc |
Certification: | CE/UL/ISO |
| Power Supply: | 380V/220V/415V/480V
optional |
Warranty: | 18 months |
| Customizable: | Highly customized to your requirements | Aftersales Service: | Field installation, commissioning and
training, online support, free spare parts, video technical support |
| Production Lead-time: | About 30~55 workdays | Payment Term: | T/T |
| Packing: | Plywood package suitable
for sea transport |
Delivery Term: | EXW, FOB,CFR,CIF,DDU |
Technical Parameters
| Description | Shuntec-P05 5T | Shuntec-P05 10T | Shuntec-P05 15T | Shuntec-P05 30T | Shuntec-P05 50T |
| Nominal Force | 50 KN | 100 KN | 150 KN | 300 KN | 500 KN |
| Structure | Bench Top Press | Bench Top Press | Bench Top Press | Bench Top Press | Bench Top Press |
| Cylinder Stroke | 150 mm | 200 mm | 200 mm | 250 mm | 300 mm |
| Open Height | 300 mm | 350 mm | 350 mm | 400 mm | 450 mm |
| Bed Table | 500*400 mm | 500*400 mm | 500*400 mm | 600*400 mm | 600*400 mm |
| Ram Dimension | 400*250 mm | 400*250 mm | 400*250 mm | 500*300 mm | 500*300 mm |
| Table Height | 750 mm | 750 mm | 750 mm | 750 mm | 750 mm |
| Closing Speed | 130 mm/s | 130 mm/s | 130 mm/s | 127 mm/s | 127 mm/s |
| Slow Pressing Speed | 13.5 mm/s | 13.5 mm/s | 13.5 mm/s | 11.8 mm/s | 11.8 mm/s |
| Return Speed | 125mm/s | 125 mm/s | 125 mm/s | 110 mm/s | 110 mm/s |
| Motor | 4 Pole, 2.2 KW | 4 Pole, 3.5 KW | 4 Pole, 5 KW | 4 Pole, 5.5 KW | 4 Pole 7.5 KW |
| Power Supply | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ |
| System Pressure | 20 Mpa | 20 Mpa | 20 Mpa | 25 Mpa | 25 Mpa |
| Machine Approx. Weight | 900 KG | 1.1 Ton | 1.3 Ton | 2.2 Ton | 3.3 Ton |
| Machine Approx. Size | 700*800*1700 mm | 700*800*1750 mm | 700*800*1750 mm | 800*900*1850 mm | 800*900*1950 mm |
Machine Options
• Color HMI
• Index tables and automatic feeding systems
• Load sensor
• Linear position sensor
• Integrated force and position transducers
• Multi pressing modes for your required assembly and press-fit process
• Real-time quality evaluation for mass ongoing production
• Rod guided ram with removable tooling plate
• T-Slots and mounting holes on moving platen and bed
• Pneumatic safety gate
• Hydraulic center ejection
• Air blast valve with timer and air nozzles
• Portable operator console
• Foot pedal
