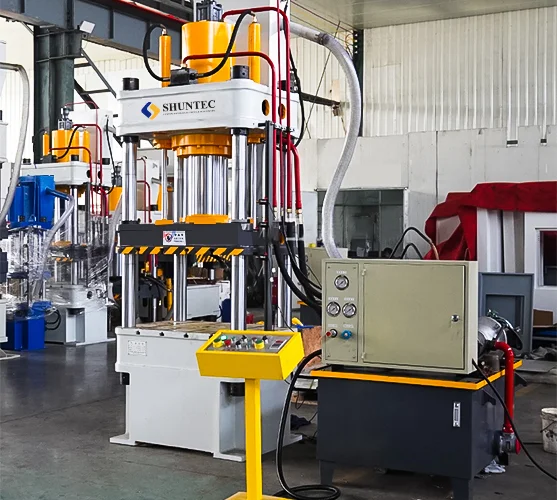

The four-column hydraulic press is molding equipment, mainly used for teaching and scientific research. The press can be used for metal parts punching, deep drawing, flagging, and other processing technology.
Four-Column Hydraulic Press Specifications
Four-column hydraulic press main technical parameters: nominal force 2000 kN; The maximum output is 240 kN; Slider travel is 800mm; Ejection stroke is 200mm; Effective area of workbench 1000X900 mm; The empty stroke speed of the slider is 90 mm/s; Slider working stroke speed 7~14 mm/s; Slider return speed 60 mm/s; The maximum distance between the slider and the working table is 1000 mm, and the working fluid pressure is 25 MPa.
Add two blank holder hydraulic devices, empty holder device is installed under the upper beam, its main technical parameters are as follows: blank holder force 500 kN; The maximum working stroke of blank holder slider is 200mm; The working stroke speed of empty holder slider is 7-14 mm/s; Slider return speed 40 mm/s; The maximum distance between the blank holder slider and the working table is 850mm.
The effective area of the hydraulic table and the forming force interval of the multi-direction die forging test, the technical parameters of the unilateral lateral forming device are as follows: the nominal force is 1000 kN; the Slider working stroke is 300 mm; The working stroke speed of slider is 7-14 mm/s, and the center height of the lateral forming cylinder is 550 mm.
As auxiliary equipment for weightlifting exercises, dumbbells are popular among fitness enthusiasts because of their advantages of portability and easy storage. The processing of dumbbell blocks generally requires special hydraulic press equipment. Shuntec Press has designed and produced a dumbbell block powder forming hydraulic press, which adopts a four-beam and four-column structure. With the cooperation of the mold, one-time pressing and forming of the dumbbell counterweight can be realized. The hydraulic press is equipped with a servo-hydraulic system, which has a high degree of automation, high productivity, power saving, and durability.
There is more than one production process for dumbbell blocks, and the more commonly used ones include casting and powder molding. In recent years, with the improvement of the technology level and the reduction of cost, the powder molding process has increasingly become the first choice for dumbbell block manufacturers. Dumbbell block powder forming hydraulic press is cost-effective production equipment specially designed for customers. It can press the dumbbell counterweight by cold pressing first and then hot pressing, or directly hot press iron powder. The key lies in the right pressure and matching mold.
Dumbbell block powder molding process
According to the material, specification, density, weight, etc. of the dumbbell counterweight, Shuntec Press can produce 315 tons, 400 tons, 500 tons, 630 tons, 800 tons, 1000 tons, 1500 tons, and other different tonnages of dumbbell block powder forming hydraulic press for customers. The forming hydraulic press can press all kinds of metal, non-metal, ceramic, and refractory products. It can be floating and pressed during processing. The two cylinders can simultaneously press in both directions. The dumbbell counterweight can be uniformly pressed in both directions with uniform density.
This dumbbell block powder forming hydraulic press designed and produced by Shuntec Press is not only used for pressing dumbbell block products but also suitable for pressing and forming various counterweight blocks, such as elevator counterweight blocks, mining machinery counterweight blocks, etc. The equipment is equipped with a servo numerical control system, which is energy-saving, low-noise, small in size, prevents oil from heating, adjustable in speed, and adjustable in pressure.
Refractory bricks are made of refractory materials, sand, fly ash, stone powder, gravel, construction waste, cement, etc. Shuntec Press has designed and produced a refractory brick powder hydraulic press, with a three-beam and four-column structure or four-beam four-column structure, which can process various silica bricks, high alumina bricks, magnesia calcium bricks, magnesia carbon bricks, magnesia bricks, and other refractory bricks with molds. Refractory bricks are widely used in high-temperature industries such as iron and steel smelting, building materials, non-ferrous metals, and chemicals.
The processing of refractory bricks is generally carried out through the cooperation of the pressure of the refractory brick powder forming hydraulic press and the mold. The specific parameters of the press can be based on customer requirements, such as tonnage, stroke, daylight, bed table size, and processing speed. It can be adjusted in ways such as the number of extra bricks in one mold.
According to the material, specification, density, etc. of refractory bricks, Shuntec Press can design and build 630 tons, 800 tons, 1200 tons, 1500 tons, 2000 tons, and other different tonnages of refractory brick powder compacting hydraulic presses for customers. Cooperating with automatic supporting devices such as automatic feeding devices, brick push-out devices, transfer devices, etc., we can realize the fully automatic operation of refractory brick production.
The refractory brick powder molding process
The refractory brick powder hydraulic press generally adopts a vertical four-column, two-way pressurizing structure, driven directly by the oil pump. It can realize two-way equal-quantity pressing, low and high-pressure multiple pressurizations, and stable pressure forming, and is equipped with a volume feeding device, product clamping and conveying device, and automatic adjustment device for brick thickness, which can meet various requirements of refractory material forming process. Loading-forming-bricking, the entire production process is fully automated.
The transmission shaft fork is an important part of the vehicle power system, which is used to transmit the driving force of the vehicle operation. The performance of the drive shaft fork directly affects the safety of the car, and it is difficult to meet the strength requirements of conventional processing methods. Shuntec Press has designed and built a multi-directional forging hydraulic press for the drive shaft fork. It adopts the three-beam four-column structure or the gib-guided frame structure. Using the forging process, the processed drive shaft fork has good mechanical properties, wear resistance, and long service life.
The multi-directional forging of the transmission shaft fork is performed by the upper die of the universal joint fork installed on the slider of the hydraulic press. Under the vertical downward power of the equipment, pressure is applied to the heated round blank which is placed on the lower die of the universal joint fork installed on the workbench. And then, the universal joint fork blank is obtained.
According to the material, specification, and process of the transmission shaft fork, Shuntec can customize the production of 400 tons, 500 tons, 630 tons, 800 tons, 1000 tons, 1500 tons, 2000 tons, and other tonnages of the forging hydraulic press. Forging times per minute can reach 80 to 120 times. The movements of hydraulic system components are sensitive and fast. The hydraulic press controls the pressing amount and stroke of the movable beam through the computer. Under the precision-controlled forging process, the dimensional accuracy of the produced blank can reach ±1~2mm.
By using the multi-directional forging hydraulic press, the material or blanks need to be heated before forging, which can improve the plasticity of the metal and reduce the deformation resistance. That is, to totally increase the plasticity of the metal so that the metal is easy to flow and form and to obtain a good structure and mechanical properties after forging. The forging temperature range of a metal refers to a temperature range between the starting forging temperature and the metal forging temperature. The principle of determining the forging temperature is to ensure that the metal has high plasticity and small deformation resistance within the forging temperature range.
Plastic building formwork is one of the most popular formwork products in recent years. Compared with building formwork of other materials, plastic building formwork has the advantages of heat and cold resistance, anti-aging, high finish, and can be used repeatedly. The plastic building formwork is mainly made of polypropylene plastic, and its production and processing mostly adopt the hot compression molding process. Shuntec Press has designed and produced a compression molding hydraulic press for molding plastic building formwork. It has the tie-rod structure of a three-beam four-column. With different molds, it can realize one-time molding of plastic building shells of different specifications.
According to the material, specification, thickness, process, etc. of the plastic building formwork, Shuntec Press can design and produce 600 tons, 800 tons, 1000 tons, 1250 tons, 1500 tons, 2000 tons, and other tonnages of plastic building formwork compression molding press for customers. The required pressure, working bed, cylinder stroke, process action, etc. can be customized on demand. The equipment is also featured in high efficiency and high speed. It is ideal production equipment for building plastic mold formwork.
Plastic building formwork molding is a kind of composite material compression molding. The powdered, granular, or fibrous plastic is first put into the forming mold, and then the mold is closed and pressed to form and solidify. It can also be used for compression molding of thermosetting plastics, thermoplastics, and rubber materials.
The plastic building formwork compression molding hydraulic press designed and produced by Shuntec adopts the pressure design of three stages of pre-compression, molding, and pressure holding, and can set the time segmented pressure for scientific distribution, which makes the energy efficiency of the equipment more significant. High precision PLC control, simple and fast mold replacement, high molding pressure, short production cycle, and high production efficiency. It is a safe and reliable molding hydraulic press.
A servo-hydraulic press is the servo motor-driven hydraulic press integrated with the precision pressure and position transducer for closed-loop control. The servo-hydraulic press uses the servo motor to replace the ordinary transmission motor. The motion curve of the press slider can be set according to the process requirements. Also, the pressure, stroke, and speed are freely adjustable on HMI. Thus, the servo-hydraulic press is widely used for high-precision molding processes, and for difficult-to-form materials and parts with complex shapes. It greatly improves the processing accuracy and the yield of the products, at the same time, it is more energy saving.
Compared with traditional hydraulic presses, the benefits of servo-hydraulic presses are obvious in the following points:
1. Universality, flexibility, and high level of intelligence
Due to its servo function, the slider movement curve is no longer just a sine curve but could be adjusted according to the process requirements.
2. High accuracy
Due to the advanced linear position transducer and pressure transducer, the motion of the slider could be precisely controlled and monitored. The position control accuracy is high level, especially near the position of the bottom dead center, the accuracy of the slider position can be guaranteed within ±0.01mm. The pressure control accuracy could be ensured within 1%. In this way, each punch of the servo-hydraulic press is highly stable during the production process. With a servo-hydraulic press, we could maintain production consistency and prevent the generation of defective products.
3. High productivity
The servo-hydraulic press retains the advantages of the crank press, the productivity is much higher than the conventional hydraulic press. During a working cycle, there is no need to complete a 360-degree rotation for the servo motor, and only need to swing at a certain angle to complete the punching cycle, which further shortens the cycle time. It minimizes unnecessary travel of the slider and greatly improves productivity.
The 1000 ton carbon fiber thermoforming servo hydraulic press is equipped with a servo-hydraulic system, which has the advantages of high efficiency, energy-saving, and environmental protection. In addition, Shuntec can custom build the carbon fiber thermoforming press with the required heated platen temperature, cramping movement speed, pressure cramping, and burp cycle managing. The Shuntec compression molding press is a highly customized manufacturing solution specifically for molding SMC and BMC.
Carbon fiber is made of natural fiber or man-made fiber processed or carbonized under certain conditions. If it is used to make composite materials, the carbon fiber has to undergo a series of surface treatments. Carbon fiber composite materials include carbon fiber/resin, carbon fiber/metal, carbon fiber/carbon, and other products. Among them, carbon fiber reinforced resin composite materials are most widely used in many industries and applications. The specific strength of glass fiber is similar to that of carbon fiber, but the specific stiffness is much lower. Obviously, carbon fiber/resin has superior performance to FRP. Carbon fiber composite materials are usually hot molded by the composite material hydraulic press. It can be one-time molded, with high efficiency and fast speed. The carbon fiber thermoforming machines are currently the ideal equipment for producing carbon fiber composite materials.
The 1000-ton carbon fiber hot forming hydraulic press with servo hydraulic system possesses obvious advantages over the conventional hydraulic press;
1. The conventional carbon fiber thermoforming hydraulic press is designed for simpreciprocating motion; The servo hydraulic carbon fiber thermoforming press is designed with precision control. It pays more attention to dynamic performance, and it can be used in the application with complicated forming processes;
2. Friction force should be considered for the servo cylinder. In the servo hydraulic system, it affects the dynamic response, control accuracy, stability, etc. of the system. In the design of the servo-hydraulic cylinder, seals with a low friction coefficient should be selected, and the moving surface should be more precise than the conventional ones.
3. Servo hydraulic cylinder is the actuator in the servo-hydraulic system or proportional system. It realizes the direction, position, speed, or deformation of the object by applying controllable pushing, pulling, pressing, torsion, and other forces to an object. In order to simplify the mechanism when designing the entire control system, the signal detection and feedback device servo valve or proportional valve, etc. are often directly installed on the servo hydraulic cylinder.
Carbon fiber composite material is an important reinforcement material in advanced composite materials. It is widely used in the field of the defense industry. It is an indispensable strategy for advanced equipment such as military aircraft, unmanned aerial vehicles, military cabinets, rockets, missiles, satellites, ships, etc. The Shuntec four-column carbon fiber composite material thermoforming press and gib-guide frame type composite carbon fiber thermoforming press are two structures for customers to choose from.
When we talk about the servo hydraulic press, we are talking about a series of hydraulic presses driven by the servo motor instead of the ordinary motor. As thus, a hydraulic press with a servo motor-driven system can also be called a servo press. Currently, in China, the servo-hydraulic presses are mainly small-tonnage presses. In order to break through the limitation of the servo motor, the hybrid drive mode is a direction of the servo press development.
Shuntec Press is a professional and leading servo-hydraulic press manufacturer in China for years. With years of engineering and manufacturing experience across dozens of industries and applications, we are confident to build every press to your specifications.
1. High level of versatility, flexibility, and intelligence.
The slider motion curve of the servo hydraulic machine is no longer just a sine curve, but an arbitrary curve that can be optimized and designed according to process requirements.
2. High precision
Because the linear position sensors are used to detect the position of the slider, the slider has motion control accuracy throughout the entire process, especially near the bottom dead center, which can ensure that the accuracy of the slider varies within ±0.01mm; The precision in the production process is stable, and the appearance of product burrs is suppressed to prevent the production of defective products.
3. High productivity
As the servo-hydraulic press retains the advantages of the crank press, the productivity is much higher than that of the ordinary hydraulic press. It can also adjust the stroke of the slider according to the difference in the workpiece. It does not need to complete a 360-degree rotation in one cycle, but only performs a certain angle of the swing. It minimizes unnecessary trips and greatly improves productivity. This helps to further shorten the overall cycle time.
The servo-hydraulic press is an energy-saving hydraulic press that uses a servo motor to drive the main oil pump, reduces the control valve loop, and precisely controls the slider of the hydraulic press. The hydraulic servo system has unique advantages such as fast speed, large load, and large power. The press is widely used in assembly applications.
1. Numerical input for press-in depth, pressure-holding time, and pressure can be easily adjusted via the HMI. The operation is very quick and simple.
2. When the servo-hydraulic press is press-fitting, the entire process of pressure and displacement can be displayed on the HMI. The entire process of assembling can be managed and monitored online. The function of real-time quality detection can also help to judge whether the product is qualified or not, and can remove the inferior-quality assembled product in time.
3. Its external end is connected to the computer, and the processing data can be stored in the computer. This helps to ensure the traceability of the data and facilities management.
1)Real-time monitoring and real-time control. The servo-electric press adopts a modular design, a closed-loop control system, which can ensure 100% quality throughout the assembly process. It can achieve and output the curve of force and displacement monitor, force and time monitor, with press control, displacement control, and rate control.
2)High accuracy. With a servo electric press, the press-fitting precision is less than 1%, and part precision is ±0.01 mm.
3)Discrimination and traceability. Instantly collect data and output force and displacement curve diagrams, configure a size identification dialog box, and automatically identify the pressing results.
4)Easy to use and easy to integrate. The Shuntec servo press is equipped with a 12-inch industrial touch screen, easy integration, and convenient data setting and saving.
5)Strong rigidity. The servo press is suitable for press-fitting work.
6)Safety, energy-saving, and environmental protection. The electric servo press is 70% more environmentally friendly and energy-saving than the conventional hydraulic press, and 90% more environmentally friendly and energy-saving than the pneumatic power source machines. The maintenance is low-cost, and the product cost can be further reduced.
