Hydraulic systems have become an essential part of modern engineering, powering everything from industrial machinery and construction equipment to automotive technologies and aerospace applications. By harnessing the power of fluids to transmit force and control motion, hydraulics offers unmatched efficiency and precision in various industries.
This article will take a deep dive into the principles, history, workings, and future of hydraulic systems, providing valuable insights for anyone from industry professionals to curious learners.
Why Hydraulic Systems Matter
At its core, hydraulics is the science of using pressurized fluids to generate, control, and transmit energy. The beauty of hydraulic systems lies in their ability to move heavy loads with relatively small forces, making them indispensable in applications requiring significant force or motion. The versatility and efficiency of hydraulic systems make them more reliable than many other mechanical systems, especially in environments where high power density, precise control, and compact design are critical.
From the construction sites that shape our cities to the machines that perform delicate tasks in the aerospace industry, hydraulic systems are the unseen force behind much of the modern world. Heavy-duty construction equipment such as bulldozers, cranes, and excavators all rely on hydraulic systems to perform lifting, digging, and moving tasks with precision. In automotive applications, hydraulic braking systems ensure the safety of millions of vehicles worldwide, while in aerospace, hydraulic systems operate everything from landing gear to flight control systems.
This article will explore the fundamentals of hydraulic systems, providing an in-depth understanding of how they function, their evolution over time, and their diverse applications across industries. Whether you're a student learning the basics of engineering or an experienced professional seeking to deepen your understanding of hydraulic technology, this guide will serve as a comprehensive resource.
We'll start with the essential principles that govern hydraulic systems, followed by an exploration of their components, their working mechanisms, and how they've evolved. Finally, we'll examine the various ways hydraulic systems are used today, their future potential, and how they continue to shape the world of engineering and beyond.
Basic Concepts and Definition of Hydraulic Systems
Hydraulic systems are fundamental to a wide range of industries, offering high power density and precise control over motion. To fully grasp how these systems work and why they are so effective, it's essential to first understand some key concepts and the basic principles behind them.
In this section, we'll define hydraulic power, break down the essential components of a hydraulic system, and compare hydraulics with other methods of force transmission, such as pneumatics.
What is Hydraulic Power?
Hydraulics is a branch of physics that focuses on the mechanical properties of liquids. It involves the use of pressurized fluids to transmit power and control movement. The fundamental principle behind hydraulic systems is that liquids are nearly incompressible, meaning they can efficiently transmit force through confined spaces. Unlike solids, liquids can flow and change shape, but they don't easily change volume when pressure is applied.
The term "hydraulic power" refers to the use of pressurized fluid (usually oil) to generate force, which is then used to move, lift, or control mechanical systems. For example, in a hydraulic press, fluid under pressure pushes against a piston, generating force that is used to compress or shape materials. This force can be directed, controlled, and amplified with great precision, which is what makes hydraulic systems so effective.
One of the key benefits of hydraulics is its ability to exert large amounts of force in a compact, relatively simple system. A small pump, operating at high pressure, can move large machinery or lift heavy loads. This makes hydraulic systems particularly useful in heavy-duty applications like construction, manufacturing, and agriculture.
Key Components of a Hydraulic System
A hydraulic system is made up of several key components that work together to generate, control, and transmit force.
The primary components include:
- Hydraulic Fluid: Typically, oil or water-based fluids are used to transmit the pressure. Hydraulic fluid is crucial because it not only carries the energy but also lubricates the moving parts within the system. The fluid must have specific properties, such as high viscosity and low compressibility, to ensure smooth operation and reliable performance.
- Hydraulic Pump: The pump is responsible for converting mechanical energy into hydraulic energy by pressurizing the fluid. It creates the flow that moves the fluid through the system. There are different types of pumps used in hydraulic systems, including gear pumps, piston pumps, and vane pumps. The pump is one of the most critical components, as it determines the system's capacity and pressure.
- Hydraulic Cylinder (Actuator): The hydraulic cylinder is the component that converts the hydraulic energy back into mechanical energy, creating linear motion. By controlling the flow of fluid into the cylinder, the system can extend or retract the piston, enabling machines to move, lift, or push with significant force.
- Valves: Hydraulic valves control the flow of fluid throughout the system, directing it to the appropriate component. These valves can regulate the speed, direction, and force of the fluid, giving the operator precise control over the system. Some of the common types of hydraulic valves include pressure relief valves, directional control valves, and flow control valves.
- Hydraulic Hoses and Fittings: These are used to transport the pressurized fluid between the various components. Hoses and fittings must be durable enough to withstand high pressures and the abrasive nature of the fluid, ensuring the system remains leak-free and operational.
Each of these components works together to ensure the efficient transmission of power. A hydraulic system is essentially a network of pipes, valves, pumps, and cylinders, all designed to work in tandem to achieve specific motions or forces.
Hydraulics vs. Pneumatics: Key Differences
While hydraulics and pneumatics both use fluid to transmit force, they are distinct systems with different characteristics and uses. The main difference lies in the type of fluid used and the resulting behavior of the system.
- Hydraulic Systems: Use liquid (usually oil) to transmit power. Because liquids are incompressible, hydraulic systems can produce very high forces with relatively small components. These systems are ideal for applications where high power output, precise control, and reliability are needed. Hydraulic systems are often found in heavy machinery, construction equipment, aircraft, and industrial presses.
- Pneumatic Systems: Use compressed air to transmit force. Since air is compressible, pneumatic systems tend to generate lower force compared to hydraulic systems. Pneumatics are commonly used in lighter applications such as powering tools, small machinery, and in automation systems for packaging, assembly, and robotics. While pneumatics are simpler and less expensive to maintain, they lack the power density and precision of hydraulic systems.
Key Differences:
- Force Output: Hydraulic systems offer much higher force output due to the incompressibility of liquids, making them suitable for heavy-duty applications.
- Precision: Hydraulic systems allow for finer, more precise control over force and motion compared to pneumatic systems.
- Size and Power: Hydraulic systems tend to be more compact for the amount of force they generate, while pneumatic systems require larger compressors and are less efficient for high-force applications.
- Cost and Maintenance: Pneumatic systems are generally less expensive and easier to maintain because they use air, but they are not suited for high-power tasks.
While both hydraulic and pneumatic systems have their places in modern technology, hydraulics are preferred for applications where heavy lifting, high precision, and power are required.
History and Evolution of Hydraulic Technology
The history of hydraulic technology is a testament to human ingenuity in using the fundamental principles of fluid dynamics to solve complex engineering challenges. From ancient civilizations harnessing the power of water to modern-day industries relying on sophisticated hydraulic systems, the evolution of hydraulic technology has been pivotal in shaping the development of many critical sectors.
Origins of Hydraulic Systems
The concept of hydraulic power dates back to ancient civilizations, where water was one of the primary sources of mechanical energy. Early uses of hydraulics were largely related to water transport and irrigation, laying the groundwork for more complex systems in the future.
One of the earliest recorded uses of hydraulic technology comes from ancient Egypt, where the first known water lifting devices, such as the shaduf (a hand-operated lever and bucket system), were used to raise water from wells or rivers for irrigation. This simple mechanical device, powered by human labor and gravity, was an early demonstration of fluid mechanics and its potential to perform work.
In ancient Greece, Archimedes' screw—a device invented around 250 BCE—was another pioneering development in hydraulic technology. It was used to raise water for irrigation and other purposes, making use of the principles of fluid motion. While relatively simple, devices like the shaduf and Archimedes' screw were essential innovations that marked the beginning of hydraulic engineering.
As the Roman Empire expanded, so did the use of hydraulic systems. The Romans built complex aqueducts to transport water over long distances, and they utilized watermills to grind grain, harnessing the power of flowing water to do mechanical work. These early applications showed the potential for using fluids to generate force and power, which would later be refined into modern hydraulic systems.
Industrial Revolution and the Birth of Modern Hydraulics
The true evolution of hydraulic technology as we know it today occurred during the Industrial Revolution in the 18th and 19th centuries. The demand for more efficient and powerful machines in factories, mining, and transportation created the need for more sophisticated systems that could handle larger loads and provide more precise control.
In the late 18th century, engineers began to develop the basic principles of hydraulics that would later form the foundation of modern hydraulic systems. In 1795, the English engineer Joseph Bramah invented the hydraulic press, a groundbreaking invention that used high-pressure fluid to lift heavy loads. The hydraulic press demonstrated the power of pressurized fluids to amplify force and handle heavy lifting tasks. Bramah's invention was the first step toward hydraulic systems becoming a staple in modern machinery and industry.
The hydraulic press soon found applications in industries such as metalworking, shipbuilding, and automotive manufacturing, where it was used for tasks ranging from shaping metal to lifting and pressing large components. The ability to exert large amounts of force through relatively compact and simple systems made hydraulics ideal for these applications.
In the late 19th and early 20th centuries, hydraulic systems became increasingly prevalent in various industries, with advances in materials and manufacturing technologies enabling more efficient and reliable hydraulic machinery. The advent of steam-powered engines and electric motors also made it easier to drive hydraulic pumps and systems, further expanding their use.
Modern Hydraulic Systems and Innovation
By the mid-20th century, hydraulic systems had evolved into the complex and highly efficient technologies that are used in modern industries today. Advances in hydraulic fluids, seals, and pump technologies have improved the reliability and longevity of hydraulic systems, making them more versatile and cost-effective.
The development of high-strength materials and precise control valves has also expanded the range of applications for hydraulic technology. Hydraulic systems are now integral to industries ranging from construction and mining to aerospace and agriculture. For example, modern excavators, cranes, and bulldozers rely on hydraulic systems for lifting, digging, and moving earth, while hydraulic brakes and steering systems are standard in the automotive industry.
In aerospace, hydraulic systems are used to control aircraft systems such as landing gear, flight control surfaces, and braking mechanisms. The high power-to-weight ratio of hydraulic systems makes them ideal for these critical applications, where both strength and efficiency are essential.
One of the most significant modern advancements in hydraulic technology is the integration of computer-controlled systems, which allow for real-time monitoring and precision control. Today, hydraulic systems are often part of automated manufacturing processes, and hydraulic robots, often used for tasks that require high precision and force, have become a standard in advanced industries like robotics and automation.
The Future of Hydraulic Technology
The future of hydraulic technology lies in further innovation and integration with other emerging technologies. As industries seek to reduce energy consumption and improve environmental sustainability, there is growing interest in hydraulic systems that can operate more efficiently and with less waste. The development of bio-based and environmentally friendly hydraulic fluids is one example of this trend.
Furthermore, the integration of hydraulics with smart sensors, artificial intelligence (AI), and machine learning holds significant promise for the future. These technologies can enable real-time system optimization, predictive maintenance, and enhanced performance, allowing hydraulic systems to operate at their full potential with minimal human intervention.
In the coming years, we can expect hydraulic systems to continue to play a pivotal role in industries that require heavy lifting, precise control, and high power density. With ongoing advancements in materials, control systems, and energy efficiency, the future of hydraulic technology is likely to see even greater precision, power, and versatility, enabling new applications and transforming existing ones.
How Hydraulic Systems Work
Hydraulic systems operate based on fundamental principles of fluid mechanics, harnessing the power of pressurized liquids to perform tasks that would be difficult or impossible with mechanical systems alone. Understanding the working principles behind hydraulic systems is essential for comprehending their versatility and efficiency in various applications. This section will explore the core mechanics of how hydraulic systems generate and control force, how fluid flows through the system, and the components that make it all possible.
The Basic Principles of Hydraulics
At the heart of hydraulic systems lies Pascal's Law, which is a fundamental principle of fluid mechanics. It states that when a change in pressure is applied to an incompressible fluid, it is transmitted undiminished throughout the fluid in all directions. This is the foundation of how hydraulic systems work: small changes in pressure can be used to generate large forces.
In practical terms, hydraulic systems use a pressurized fluid—typically hydraulic oil or water—inside a closed system to transmit force. When pressure is applied to a small piston (such as a hydraulic pump), this pressure is transferred through the fluid to a larger piston or cylinder, which then moves with much greater force. This ability to amplify force makes hydraulic systems incredibly powerful, even when the physical components themselves are small and compact.
The key advantage of hydraulics is that, unlike mechanical systems that rely on solid components (which can wear out or require large sizes to carry high loads), hydraulic systems can provide high power output through relatively small components, making them suitable for a variety of heavy-duty and precise applications.
The Functioning of Hydraulic Machinery
A hydraulic system typically consists of a few critical components that work together to generate, control, and transmit force. The basic operation follows a predictable pattern:
- Hydraulic Pump: The process begins with the hydraulic pump, which is responsible for generating the flow of fluid under pressure. The pump pulls fluid from the reservoir and pushes it through the system at high pressure. As the pump moves fluid, it creates a force that can be directed to perform various mechanical tasks.
- Hydraulic Cylinders: After the fluid is pressurized by the pump, it flows into hydraulic cylinders, which are the components that do the work in most hydraulic systems. Hydraulic cylinders consist of a piston that moves inside a cylindrical housing. The pressurized fluid forces the piston to move in one direction, causing the cylinder to extend or retract. This movement can be used for tasks such as lifting, pushing, or pulling.
- Hydraulic Valves: To control the flow of pressurized fluid and direct it where it is needed, hydraulic systems incorporate valves. These valves can regulate the flow rate, direct the fluid to different parts of the system, and control the force exerted by the hydraulic cylinders. Some systems also include proportional valves, which adjust the pressure and flow in response to input signals, offering more precise control.
- Hydraulic Reservoir: The reservoir holds the hydraulic fluid (often oil) when it's not in use and helps to dissipate heat generated by the system. As the fluid circulates through the system, it may lose heat due to friction, and the reservoir allows the fluid to cool down before being reused.
- Hydraulic Hoses and Pipes: These are used to transport the pressurized fluid from one component to another. Typically made from durable materials that can withstand high pressure, these hoses connect the pump, cylinders, valves, and reservoir, ensuring the smooth flow of fluid throughout the system.

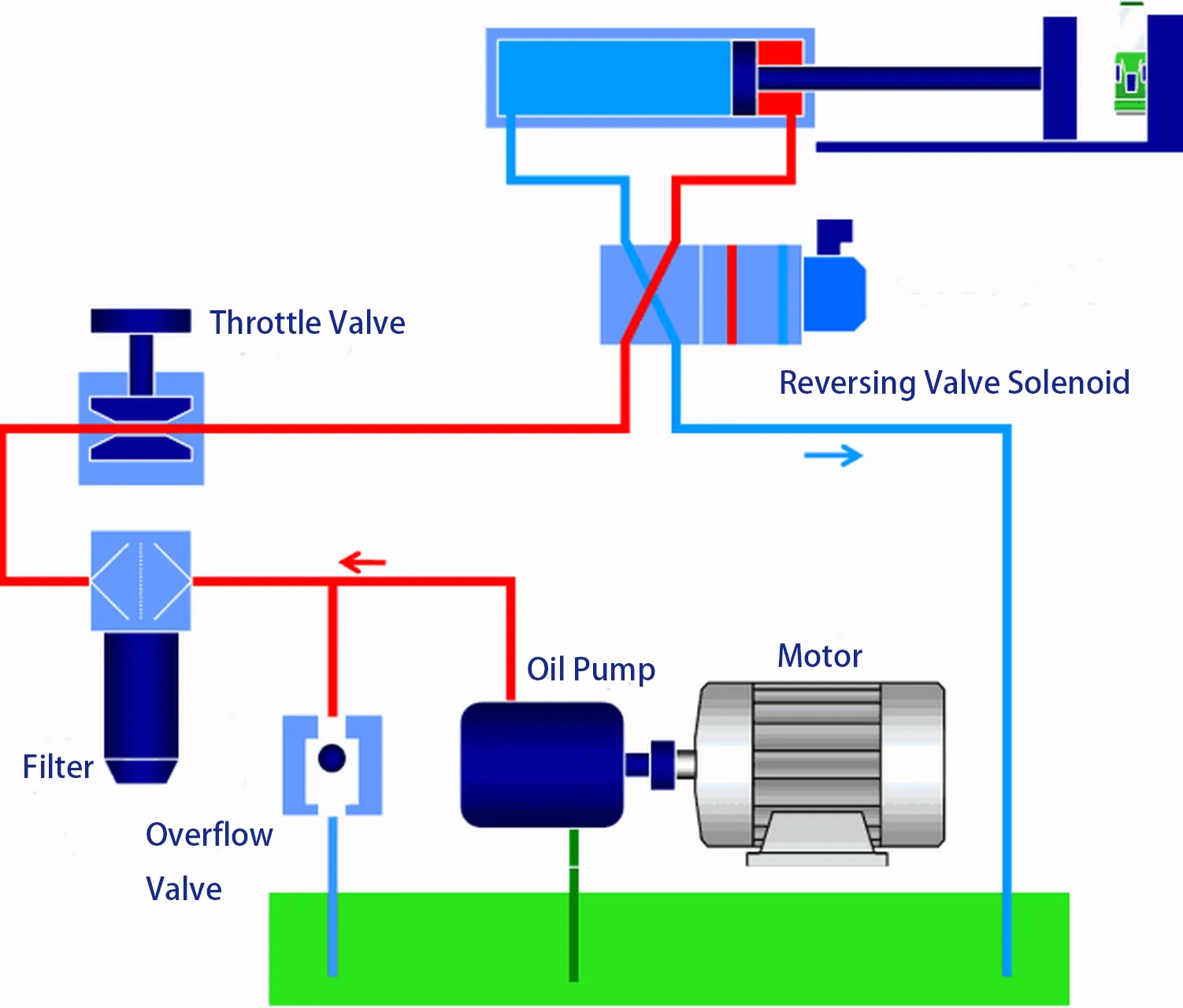

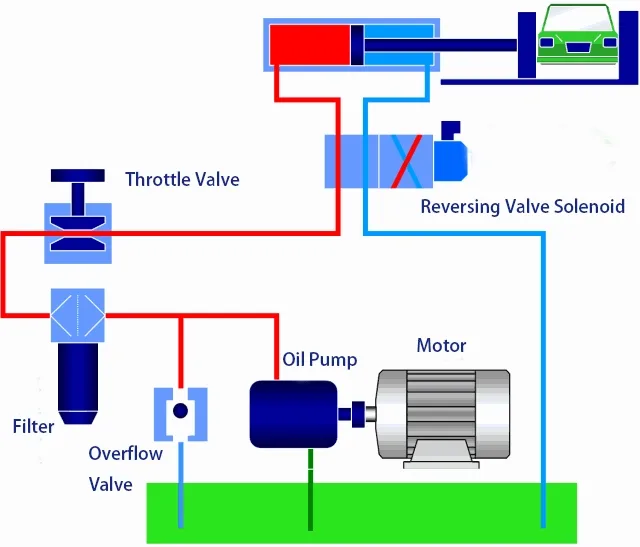

The Hydraulic Circuit Flow
In a hydraulic system, the fluid travels through a loop or circuit that ensures force is generated and directed where needed. Here's a breakdown of how the hydraulic circuit functions:
- Fluid Pressurization: When the pump is activated, it pressurizes the fluid and sends it into the system. The pressure created is proportional to the force the system can generate.
- Fluid Flow Control: The fluid is directed through the valves, which open or close to control the flow to different cylinders or actuators. The valves can be manually or electronically controlled, depending on the complexity of the system.
- Energy Conversion: As the fluid flows into the hydraulic cylinder, it converts the pressure into linear force. This force is used to move the piston inside the cylinder, resulting in mechanical motion.
- Return and Replenishment: Once the fluid has passed through the system and done its work, it is returned to the reservoir to be cooled and reused. The closed-loop system ensures that the hydraulic fluid is continually cycled through, maintaining system efficiency.
This controlled flow of pressurized fluid enables hydraulic systems to perform tasks such as lifting heavy loads, moving machinery, or operating precise tools. The ability to exert large amounts of force with relatively small inputs—combined with the precision control offered by valves—makes hydraulic systems versatile for both high-power and delicate applications.
Advantages of Hydraulic Systems
Hydraulic systems are favored in industries for several reasons, including:
- High Force Output: Even compact systems can generate tremendous amounts of force, which makes them ideal for heavy-duty applications such as lifting, pressing, and moving large objects.
- Precision Control: The use of valves and actuators allows for highly precise control of movement, making hydraulics suitable for tasks that require exact motions, such as in manufacturing or aerospace.
- Reliability and Efficiency: Hydraulic systems are less prone to wear and tear compared to mechanical systems. The fluid-based nature of hydraulics means there is less friction, resulting in reduced maintenance needs and higher system longevity.
- Compact and Flexible Design: The power-to-weight ratio of hydraulic systems is favorable, allowing engineers to design compact and efficient machines that can perform a wide range of tasks.
Applications of Hydraulic Systems
Hydraulic systems are widely used across a range of industries due to their ability to generate significant force, provide precise control, and operate efficiently in compact spaces. These systems are found in applications where high power density, precision, and reliability are essential. From heavy machinery to automotive systems and aerospace engineering, hydraulics play a critical role in modern technology. In this section, we'll explore some of the most prominent applications of hydraulic systems in various industries.
Construction and Heavy Machinery
One of the most common and crucial applications of hydraulic systems is in construction and heavy equipment. Hydraulic systems are integral to machines such as excavators, bulldozers, cranes, and loaders, where high force and precise control are necessary.
- Excavators: Hydraulics are used to power the boom, bucket, and arm of an excavator, allowing for digging, lifting, and material handling. The use of hydraulic cylinders provides the necessary strength and precision to perform tasks such as trenching or lifting heavy objects.
- Cranes: Hydraulic systems in cranes enable smooth, controlled lifting and positioning of heavy loads. Hydraulic jacks and pumps are also used to extend and retract the crane's boom, offering significant power in lifting operations.
- Bulldozers and Loaders: Hydraulics are used to operate the blade and other movable components of bulldozers and loaders, enabling them to clear debris, grade earth, and move heavy materials with ease.
Hydraulic machinery is essential in construction because it can lift heavy loads and perform tasks that would be impossible with mechanical systems alone, all while offering precise control and high power output in relatively compact machinery.
Automotive Industry
Hydraulic systems also play a crucial role in the automotive industry, particularly in the operation of braking systems, suspension systems, and power steering.
- Hydraulic Brakes: The hydraulic braking system is a safety-critical application found in almost all modern vehicles. When a driver presses the brake pedal, hydraulic fluid is pushed through brake lines, applying force to the brake pads or shoes to slow down or stop the vehicle. The ability to transmit force efficiently through the fluid is what allows modern vehicles to stop with precision, even under high speeds or heavy loads.
- Power Steering: Hydraulic systems are used in power steering to assist drivers in turning the wheel. Hydraulic pumps generate the force required to turn the wheels with minimal effort from the driver, making steering more responsive and less physically demanding.
- Hydraulic Suspensions: Some vehicles, particularly luxury cars or heavy trucks, use hydraulic suspensions for smoother rides. These systems use hydraulic fluid in cylinders to adjust the height and stiffness of the vehicle's suspension, ensuring stability and comfort, especially when carrying heavy loads or navigating uneven terrain.
The automotive industry benefits from hydraulic systems because they can transmit force over long distances and handle high pressures, ensuring smooth, reliable performance in critical vehicle functions.
Aerospace Industry
In aerospace, hydraulic systems are essential for operating critical flight components and ensuring safety and performance. The aerospace sector relies on hydraulics for its ability to handle high-pressure environments and provide precise control in demanding applications.
- Flight Control Systems: Hydraulic actuators are commonly used to control various flight surfaces, such as flaps, ailerons, rudders, and elevators. These surfaces are essential for controlling the aircraft's direction, altitude, and stability. Hydraulic systems provide the precise control needed to adjust these surfaces in response to pilot input.
- Landing Gear: Hydraulics are used in the operation of landing gear, helping to extend and retract the gear during takeoff and landing. The hydraulic system ensures smooth and reliable operation, even under the extreme pressures and conditions experienced during flight.
- Cargo Doors and Other Systems: Hydraulics are also used to power cargo doors, emergency slides, and other mechanisms in an aircraft. The compact size and ability to generate significant force make hydraulic systems ideal for these high-stakes applications.
Hydraulics are integral to the aerospace industry because of their ability to provide powerful and precise control in space-constrained environments, making them essential for flight operations and safety.
Agricultural Equipment
In agriculture, hydraulic systems are used in a variety of machines to improve productivity and reduce labor. Tractors, harvesters, and other farm equipment rely on hydraulics for lifting, pushing, and digging tasks.
- Tractors: Hydraulic systems are used to power implements such as plows, seeders, and loaders on tractors. They allow farmers to lift heavy loads, adjust equipment height, and manage attachments with ease.
- Combine Harvesters: Hydraulic systems are critical in combine harvesters for adjusting the height of the cutting platform and controlling the grain collection system. They enable the efficient harvesting of crops by allowing precise adjustments to the machinery.
- Sprayers and Spreaders: Hydraulic systems are also used to control sprayers and spreaders for applying pesticides, fertilizers, and seeds, ensuring uniform distribution over large fields.
By providing the necessary force and precision in these machines, hydraulic systems enable farmers to perform labor-intensive tasks more efficiently, increasing productivity and reducing operational costs.
Marine Industry
In the marine industry, hydraulics are essential for controlling various critical systems, particularly in ships, oil rigs, and submarines, where reliable force transmission is required.
- Steering Systems: Hydraulic steering systems are used to control the rudder of large ships and boats. These systems offer precise steering capabilities, even under high speeds and heavy load conditions.
- Deck Machinery: Hydraulic systems are used to operate winches, cranes, and other deck machinery on ships. They help load and unload cargo, position heavy equipment, and assist with mooring and anchoring.
- Submarine Systems: Hydraulics are used in submarines to operate ballast tanks, rudders, and diving planes, allowing for efficient control of depth and stability under water.
In the marine industry, the ability of hydraulic systems to operate in tough, variable environments—such as deep-sea pressures—makes them indispensable for ensuring smooth and efficient operations.
Hydraulic Fluid and Its Importance
Hydraulic fluid is the lifeblood of any hydraulic system. It serves as the medium through which power is transmitted, enabling the system to generate, control, and amplify force. Without the proper hydraulic fluid, the system would fail to function efficiently, or could even suffer from serious damage. This section will explore the types of hydraulic fluids, their functions, and why choosing the right fluid is critical for system performance and longevity.
What is Hydraulic Fluid?
Hydraulic fluid is a specially designed liquid used in hydraulic systems to transmit power. It is typically made from a combination of base oils and additives, which give it the necessary properties for optimal performance in hydraulic circuits. The fluid circulates through the system under pressure, flowing from the pump to the various components, such as cylinders and valves, where it provides the necessary force to power the machinery.
In addition to transmitting power, hydraulic fluid has several other critical functions:
- Lubrication: It lubricates the internal components of the hydraulic system (such as pumps, valves, and cylinders) to reduce friction, wear, and heat buildup.
- Heat Transfer: Hydraulic fluid helps to dissipate the heat generated by friction and pressure within the system, maintaining the temperature within an acceptable range.
- Sealing: The fluid forms a thin film between moving parts, preventing internal leakage and helping to maintain the system's pressure.
- Contaminant Removal: Good hydraulic fluid helps to flush out contaminants and debris that may enter the system, keeping components clean and reducing the risk of damage.
Types of Hydraulic Fluids
There are several types of hydraulic fluids, each designed for specific applications, environmental conditions, and performance requirements. The main types of hydraulic fluids include:
- Mineral Oil-based Fluids: These are the most commonly used hydraulic fluids, made from refined petroleum oils. They are cost-effective, widely available, and suitable for most standard hydraulic applications. However, they require regular maintenance to prevent contamination and degradation over time.
- Water-based Fluids: Water-based fluids, such as water-glycol mixtures, are used in systems where fire resistance is a priority. While they offer excellent fire resistance, they tend to have lower lubricating properties compared to mineral oil-based fluids.
- Synthetic Fluids: These fluids are made from synthetic compounds and are designed for high-performance applications, particularly in extreme temperature conditions. Synthetic hydraulic fluids offer advantages such as better stability, less degradation over time, and improved high-temperature performance.
- Biodegradable Fluids: These are environmentally friendly fluids that break down naturally over time, reducing the impact on the environment in case of spills or leaks. They are often used in environmentally sensitive areas, such as forestry and agriculture.
Choosing the Right Hydraulic Fluid
Selecting the right hydraulic fluid for a given system is crucial for ensuring optimal performance and extending the life of the hydraulic components. The following factors must be considered when choosing hydraulic fluid:
- Viscosity: The fluid's viscosity determines how easily it flows through the system and how well it can transmit force. The correct viscosity ensures that the fluid can effectively lubricate and transmit power without causing excessive wear or friction. It must be able to flow smoothly at both high and low temperatures.
- Temperature Range: Hydraulic fluids need to perform efficiently within the expected operating temperature range of the system. Fluids with low pour points are essential for cold environments, while fluids with high flash points are needed for systems operating at high temperatures.
- Additives and Stability: Additives are included in hydraulic fluids to improve their performance, such as anti-wear additives, corrosion inhibitors, and anti-foaming agents. Choosing a fluid with the right additives ensures that the system will operate smoothly over time, reducing wear and preventing damage.
- Environmental Impact: In industries where environmental sustainability is important, biodegradable fluids or environmentally friendly synthetic fluids may be preferred, as they cause less harm in case of accidental spills or leaks.
The Importance of Regular Fluid Maintenance
For a hydraulic system to operate at its full potential, regular maintenance of the hydraulic fluid is essential. Over time, hydraulic fluids can become contaminated with dirt, water, and metal particles from the system's components. These contaminants can cause wear and corrosion, degrade the fluid's performance, and lead to system failure.
Regular maintenance practices include:
- Fluid Inspection and Monitoring: Checking the fluid's color, clarity, and odor can help detect issues such as contamination or degradation. Additionally, monitoring the fluid's temperature and pressure levels during operation can reveal if the fluid is losing its effectiveness.
- Fluid Replacement: As hydraulic fluid ages, it loses its effectiveness. Regular fluid changes or top-ups ensure that the system operates with optimal lubrication and protection.
- Filtration: Installing high-quality filtration systems can help remove contaminants and extend the life of both the fluid and the hydraulic components. Filters should be checked and replaced regularly to ensure their effectiveness.
By maintaining the quality of the hydraulic fluid, operators can minimize the risk of system failures, reduce maintenance costs, and ensure the long-term reliability and efficiency of the hydraulic system.
Maintenance and Troubleshooting of Hydraulic Systems
Hydraulic systems, while highly efficient and reliable, require regular maintenance and proper care to ensure they continue to operate at optimal performance. Given their complexity and reliance on pressurized fluid, any failure or malfunction can lead to significant downtime or costly repairs. Proper maintenance helps prevent common issues such as fluid contamination, leaks, and pressure imbalances. In this section, we will explore essential maintenance practices and troubleshooting techniques for hydraulic systems.
Routine Maintenance of Hydraulic Systems
Regular maintenance is crucial for extending the lifespan of hydraulic components and ensuring that the system remains efficient and safe to operate. Here are some key maintenance practices for hydraulic systems:
- Check and Replace Hydraulic Fluid: The most important maintenance task is ensuring that the hydraulic fluid is clean, at the correct level, and has the proper viscosity for the system. Over time, hydraulic fluid can become contaminated with debris, moisture, or particles from wear and tear. Regularly inspecting and changing the hydraulic fluid is essential to prevent system damage and ensure smooth operation.
- Inspect Hydraulic Filters: Hydraulic filters help keep contaminants out of the system, but they can become clogged over time. Regularly inspecting and replacing filters is crucial to maintaining the fluid's cleanliness and ensuring that components such as pumps and valves do not become damaged by contaminants.
- Check for Leaks: Leaks in hydraulic systems can lead to a loss of pressure, fluid, and, ultimately, system performance. Periodically inspecting hoses, fittings, seals, and cylinders for leaks is necessary to prevent operational failures and maintain system efficiency.
- Lubricate Moving Parts: The moving components of a hydraulic system, such as pumps, cylinders, and valves, require proper lubrication to reduce friction and wear. Ensuring that all moving parts are adequately lubricated helps prevent premature failure and reduces energy loss due to friction.
- Monitor Fluid Temperature: Hydraulic fluid can overheat under high-pressure conditions, causing it to degrade more rapidly. Regular monitoring of the fluid temperature helps ensure that the system is operating within optimal temperature ranges. If the fluid is too hot, it may be necessary to clean or replace heat exchangers or improve ventilation.
Common Troubleshooting Issues in Hydraulic Systems
Even with regular maintenance, hydraulic systems can experience issues. Identifying and addressing these problems early can save time and money. Below are some common hydraulic system problems and how to troubleshoot them:
- Low Pressure: If a hydraulic system is not generating sufficient pressure, it could be caused by a number of factors, including low fluid levels, clogged filters, or worn-out pumps.
- Troubleshooting: Check the fluid level and top up if necessary. Inspect the filters and replace them if clogged. If the problem persists, inspect the pump for wear or damage and consider a replacement if needed.
- Slow or Jerky Operation: If the hydraulic machinery is moving too slowly or erratically, it may be a sign of air in the hydraulic fluid, low fluid levels, or a malfunctioning valve.
- Troubleshooting: Check for leaks that might allow air into the system. Bleed the system to remove trapped air, and ensure the fluid is at the proper level. If jerky motion persists, inspect the valves for blockages or damage.
- Excessive Heat: Overheating can occur when the system is under excessive load, when fluid viscosity is incorrect, or if there is insufficient cooling.
- Troubleshooting: Ensure that the fluid is the correct type and viscosity for the system. Check the heat exchanger or cooling system to ensure it is functioning properly. If needed, install additional cooling to prevent overheating.
- Contaminated Fluid: Contaminants in the hydraulic fluid can cause wear on internal components and compromise the system's performance.
- Troubleshooting: Regularly change the hydraulic fluid and clean the reservoir to remove dirt and debris. Use high-quality filters and ensure that all seals and hoses are in good condition to prevent contamination.
How to Prevent Hydraulic System Failures
Prevention is always better than cure when it comes to hydraulic systems. Here are some proactive measures to minimize the risk of failures:
- Use High-Quality Hydraulic Fluid: Always use the recommended type and grade of hydraulic fluid for the system. Using substandard or incorrect fluids can lead to increased wear and inefficient operation.
- Follow Manufacturer Guidelines: Always adhere to the manufacturer's recommended maintenance schedule and specifications. Regularly check fluid levels, filter condition, and component wear to stay ahead of potential issues.
- Invest in Quality Components: When replacing parts, always choose high-quality components that are compatible with the system. Poor-quality seals, hoses, and pumps can lead to system failure and costly repairs.
- Train Operators and Maintenance Personnel: Ensure that anyone operating or maintaining the hydraulic system is properly trained. Poor handling or maintenance can lead to unnecessary damage and operational inefficiencies.
When to Call a Professional
While regular maintenance and basic troubleshooting can be performed in-house, some issues may require professional assistance. If the system continues to experience performance problems despite regular maintenance or if complex issues arise—such as pump failure, internal leaks, or extensive contamination—it's time to consult a hydraulic system expert. Timely intervention by a professional can prevent small problems from escalating into larger, more costly repairs.
Advantages and Disadvantages of Hydraulic Systems
Hydraulic systems are widely regarded for their efficiency, power, and precision. However, like any technology, they come with both advantages and disadvantages. Understanding these strengths and weaknesses is crucial when considering the implementation of hydraulic systems in various applications. This section explores the primary benefits and potential drawbacks of hydraulic systems to provide a balanced view of their capabilities.
Advantages of Hydraulic Systems
Hydraulic systems are renowned for their numerous advantages, particularly in applications where high force, precision, and reliability are required. Here are some of the most notable benefits:
- High Power Density: Hydraulic systems can generate significant force in a compact space. A relatively small hydraulic pump can move heavy loads or perform large-scale tasks with minimal physical size. This makes hydraulics ideal for applications in tight spaces or for machines that need to carry out heavy-duty tasks without taking up a lot of room.
- Precise Control: One of the key advantages of hydraulic systems is their ability to provide fine, precise control over movement. By adjusting the flow of hydraulic fluid, operators can control the speed, direction, and force of hydraulic actuators with incredible accuracy. This is especially important in industries like aerospace, automotive manufacturing, and construction, where precision is critical.
- Flexibility in Application: Hydraulics can be used in a wide variety of industries and applications, from lifting and positioning heavy loads in construction equipment to actuating control surfaces in aircraft. Their versatility makes them indispensable in machinery ranging from industrial robots to mobile machines such as tractors and excavators.
- Ease of Transmission of Force: Unlike mechanical systems that rely on gears, belts, or chains, hydraulic systems can transmit force over long distances without significant loss of power. This is because hydraulic fluid can travel through long pipes with minimal resistance. This makes hydraulics an efficient option in large-scale systems or in machines that require movement across large distances.
- Smooth Operation: Hydraulic systems can operate with a high degree of smoothness and minimal vibration, which makes them suitable for applications that require stable and quiet operation. For example, hydraulic lifts, aircraft controls, and precision machinery benefit from the smooth motion that hydraulics provide.
Disadvantages of Hydraulic Systems
While hydraulic systems offer many advantages, they also come with some inherent drawbacks that need to be considered:
- Leakage Issues: One of the most common problems with hydraulic systems is fluid leakage. Hydraulic systems operate under high pressure, and even small leaks can result in loss of efficiency, contamination of the environment, and operational failures. Leaks in hoses, fittings, or seals can be challenging to detect and may require regular inspections and maintenance to ensure the system remains sealed.
- Cost of Maintenance: While hydraulic systems can be reliable, they do require regular maintenance to function properly. The need for periodic checks on fluid levels, filters, seals, and other components can add to operational costs. Additionally, repairing or replacing components such as pumps, cylinders, or valves can be expensive.
- Fluid Contamination: Hydraulic systems rely on clean fluid to operate effectively. Contaminants, such as dirt, water, or air, can damage components, cause wear, and reduce system efficiency. Contamination is a significant risk in hydraulic systems, and maintaining fluid cleanliness requires careful monitoring and filtration systems.
- Environmental Impact: Hydraulic fluids are typically oil-based, which means they can pose environmental risks if spilled or improperly disposed of. Spills can lead to soil and water contamination, which is especially concerning in industries like agriculture and construction. Newer, more environmentally friendly hydraulic fluids are being developed, but their cost and performance in certain conditions still present challenges.
- Temperature Sensitivity: Hydraulic systems can be sensitive to temperature fluctuations. High temperatures can cause the fluid to degrade, leading to a loss in performance, while extremely low temperatures can cause fluid to thicken, which might impair system efficiency. To mitigate these issues, systems need to be equipped with proper cooling or heating mechanisms, which can add to the system's complexity and cost.
- Complexity of Design: While hydraulic systems are versatile, designing and implementing them can be complex. System design requires careful selection of components, fluid types, and control mechanisms to ensure reliability and efficiency. Improper design or mismatched components can result in system failure or reduced performance.
Weighing the Pros and Cons
Despite the potential disadvantages, hydraulic systems continue to be favored in many industries due to their unique advantages. The key to making effective use of hydraulics lies in understanding their strengths and limitations and applying them in the right context. For example, in industries like construction and mining, where high force is required, the benefits of hydraulics far outweigh the drawbacks. Conversely, for applications where maintenance costs or environmental concerns are a primary focus, other power transmission methods might be more appropriate.
In conclusion, hydraulic systems offer a combination of power, precision, and versatility that is difficult to match by other means of force transmission. However, the trade-offs in terms of maintenance, leakage risks, and environmental considerations must be carefully managed to ensure their continued success in various applications.
Hydraulic Systems vs. Electric Systems: A Comparison
In many industrial and mechanical applications, both hydraulic and electric systems are commonly used to transmit power and control motion. Each system has its own set of advantages and is suited to different types of tasks. While electric systems are often seen as more straightforward and easier to maintain, hydraulic systems are often favored for their ability to provide high force in compact, controlled motions. This section compares hydraulic and electric systems, helping you understand their respective strengths, weaknesses, and ideal use cases.
Power and Force Generation
- Hydraulic Systems: One of the primary advantages of hydraulic systems is their ability to generate high levels of power and force in a relatively compact form. The use of pressurized fluid allows hydraulic systems to provide significant force with minimal space. This makes hydraulics ideal for applications that require heavy lifting, pushing, or pulling, such as construction machinery (excavators, cranes) and industrial presses. Hydraulic systems can deliver substantial force even in challenging environments where space is limited.
- Electric Systems: Electric systems, on the other hand, rely on motors to generate force, which often requires more complex components like gearboxes and motors to achieve the same level of power. While electric systems can provide sufficient power for many applications, they may struggle to match the high force output of hydraulic systems, particularly in applications like heavy machinery or high-load lifting.
Conclusion: Hydraulic systems generally outperform electric systems when high force generation and compact design are required. However, electric systems are often adequate for lower-force applications, such as powering small motors and actuators.
Precision and Control
- Hydraulic Systems: Hydraulic systems offer exceptional control over speed, force, and movement direction. By adjusting the flow of hydraulic fluid, operators can fine-tune the performance of hydraulic machinery with remarkable precision. This makes hydraulics ideal for tasks requiring smooth, adjustable motion, such as in robotics, manufacturing, and aerospace applications.
- Electric Systems: Electric systems also offer precise control, especially with modern technologies like servo motors and variable frequency drives (VFDs). However, the precision of electric systems can be limited when it comes to handling large, high-load motions. Electric actuators can be slower to respond compared to hydraulic cylinders, especially under heavy load conditions.
Conclusion: Both hydraulic and electric systems provide precise control, but hydraulic systems excel in applications requiring fast, heavy-duty, and adjustable movements, while electric systems are often better suited for tasks requiring high-speed precision in smaller, less force-demanding environments.
Energy Efficiency and Power Loss
- Hydraulic Systems: Hydraulic systems can be highly efficient in converting input energy into mechanical work, particularly in high-load applications. However, they are prone to energy losses due to friction, leaks, and the need for complex pumps and valves. Fluid power transmission, while effective, can suffer from efficiency losses over time due to the degradation of hydraulic fluid and system wear.
- Electric Systems: Electric systems are generally more energy-efficient than hydraulic systems for tasks involving lower power or less demanding machinery. Electric motors have fewer moving parts and typically experience less energy loss than hydraulic pumps and fluid circuits. However, the efficiency of electric systems can decrease when used in high-torque applications that require substantial gearing or mechanical linkages.
Conclusion: Electric systems tend to be more energy-efficient for lower-load tasks, while hydraulic systems can be more efficient for high-power applications. However, hydraulic systems are subject to greater energy losses due to friction and leaks, making their efficiency more variable over time.
Maintenance and Durability
- Hydraulic Systems: Hydraulic systems generally require more intensive maintenance than electric systems. Hydraulic components—such as pumps, valves, hoses, and seals—are subject to wear and tear, and regular maintenance is essential to prevent fluid contamination, leaks, and system breakdowns. Fluid leaks can lead to performance issues and environmental concerns if not properly managed. Additionally, hydraulic fluid needs to be changed regularly to maintain system efficiency.
- Electric Systems: Electric systems typically require less maintenance than hydraulic systems. Motors and electric actuators generally have fewer moving parts and are less prone to wear. However, electric systems can still experience issues such as overheating, motor failure, or problems with electrical connections. Overall, electric systems are often more straightforward and cost-effective to maintain, particularly in applications with lower power demands.
Conclusion: Electric systems are typically easier and cheaper to maintain, particularly in applications where high force is not required. In contrast, hydraulic systems demand more frequent and specialized maintenance, but they are better suited to high-force applications.
Environmental and Safety Considerations
- Hydraulic Systems: Hydraulic systems can have environmental impacts due to the use of hydraulic fluids, which can leak into the environment and cause contamination if not handled properly. Additionally, hydraulic systems operate under high pressure, and failure of components such as hoses or seals can lead to hazardous leaks. Regular maintenance and proper handling of hydraulic fluids are necessary to mitigate these risks.
- Electric Systems: Electric systems are generally safer and more environmentally friendly than hydraulic systems. They do not involve pressurized fluids, reducing the risk of leaks and contamination. However, they can still have environmental impacts if the electricity used is sourced from non-renewable energy.
Conclusion: Electric systems have fewer environmental and safety concerns compared to hydraulic systems. Hydraulics require careful management to prevent fluid leakage and contamination, while electric systems offer cleaner, safer alternatives for many applications.
Cost and Complexity
- Hydraulic Systems: Hydraulic systems tend to be more expensive to design, install, and maintain. The need for specialized components such as pumps, valves, hoses, and tanks adds to the complexity and cost. Moreover, the need for regular maintenance, fluid replacement, and repairs can lead to higher long-term costs, especially in large, industrial systems.
- Electric Systems: Electric systems are generally less expensive to install and maintain, especially for low- to medium-power applications. The components—such as motors, actuators, and controllers—are less complex and require fewer specialized skills for maintenance. As a result, electric systems are often the preferred choice for applications where cost-efficiency and ease of maintenance are critical.
Conclusion: Electric systems are more cost-effective, particularly in applications with lower power demands. Hydraulic systems, while more expensive upfront and to maintain, offer superior performance for high-force applications.
Innovations and the Future of Hydraulic Technology
Hydraulic systems have been integral to industries such as construction, manufacturing, automotive, and aerospace for decades. However, as technology continues to evolve, so too does the potential for hydraulic systems. With advancements in materials, digital control systems, energy efficiency, and automation, the future of hydraulic technology is filled with exciting possibilities. This section explores some of the key innovations in hydraulic technology and how they may shape its future in various applications.
Smart Hydraulic Systems and Automation
One of the most significant trends in hydraulic technology is the integration of smart systems and automation. By incorporating sensors, real-time data analytics, and advanced control algorithms, modern hydraulic systems can now operate with a higher degree of efficiency, precision, and responsiveness.
- Sensors and Data Analytics: Advanced sensors embedded in hydraulic components can monitor variables like pressure, temperature, fluid level, and flow rate. These sensors can feed data back to control units, allowing for real-time adjustments to optimize performance. Predictive maintenance, based on this data, can also reduce the likelihood of system failure, extending the lifespan of hydraulic components and reducing downtime.
- Automated Control Systems: With the advent of Industrial Internet of Things (IIoT) and cyber-physical systems, hydraulic systems can now be integrated into broader automated systems. For example, in robotic systems or autonomous vehicles, hydraulics are increasingly used alongside electric motors and pneumatic systems, with advanced control systems managing all components seamlessly. This allows for more dynamic and flexible operations, improving productivity and precision.
Energy Efficiency and Green Hydraulics
As the global focus shifts toward sustainability and energy conservation, hydraulic systems are also evolving to become more energy-efficient and environmentally friendly. The increasing emphasis on green hydraulics is driving the development of more efficient fluid power systems.
- Energy Recovery Systems: New hydraulic systems incorporate technologies such as energy recovery to minimize energy wastage. For example, regenerative hydraulic circuits can recover and store energy during deceleration or lowering of loads, then use that stored energy during subsequent operations. This reduces energy consumption and minimizes the need for external power sources.
- Environmentally Friendly Fluids: Traditional hydraulic fluids, often petroleum-based, can pose environmental risks if they leak or spill. As a result, there is a growing trend toward biodegradable and environmentally friendly hydraulic fluids. These fluids are designed to break down more quickly and have less impact on the environment if they leak, addressing both environmental concerns and industry regulations.
- Improved Sealing and Leak Prevention: Innovations in sealing technologies are also contributing to more environmentally friendly hydraulic systems. Improved seals help to prevent fluid leakage, which not only protects the environment but also enhances the overall efficiency and reliability of hydraulic systems.
Miniaturization and Lightweight Materials
The trend toward miniaturization and the use of lightweight materials is another exciting development in hydraulic technology. The demand for smaller, more powerful hydraulic systems is particularly relevant in industries like aerospace, automotive, and robotics, where space and weight constraints are critical.
- Advanced Materials: New materials, such as carbon fiber composites and lightweight alloys, are being used to construct hydraulic components that are both stronger and lighter. These materials reduce the overall weight of the hydraulic system, making it more suitable for high-performance applications like drones, electric vehicles, and space exploration.
- Compact Systems: Miniaturized hydraulic components are being developed to provide the same power output but in a more compact form factor. This is crucial for applications where space is limited, such as in small autonomous robots, medical devices (e.g., surgical robots), and certain aerospace systems where reducing weight without sacrificing performance is essential.
Hydraulic-Electric Hybrid Systems
One of the most promising developments is the integration of hydraulic and electric technologies, creating hybrid systems that combine the strengths of both. These hybrid systems can leverage the high power density and efficiency of hydraulics for heavy lifting, while incorporating the precision and control offered by electric motors.
- Electric-Hydraulic Hybrid Systems: In hybrid vehicles or machines, hydraulic systems can be used for high-power tasks, such as lifting or moving heavy loads, while electric systems handle lower-power tasks, like steering or controlling smaller movements. By combining the two technologies, manufacturers can achieve the best of both worlds: power when needed and efficiency when required.
- Energy Management: These hybrid systems can intelligently switch between hydraulic and electric power depending on the task. This results in energy savings, increased system longevity, and better overall performance. For example, in construction machinery, hydraulic systems could handle heavy lifting, while electric motors power auxiliary components, improving energy efficiency.
Future Prospects: Integration with AI and Machine Learning
Looking further ahead, artificial intelligence (AI) and machine learning are expected to play a role in transforming hydraulic systems. By using AI, hydraulic systems could become even more adaptive and intelligent, optimizing performance based on changing conditions or operator input.
- Predictive Maintenance with AI: AI can be used to analyze the data collected from hydraulic systems, learning from patterns of operation to predict when components are likely to fail. This predictive maintenance can significantly reduce downtime and repair costs by identifying potential issues before they become critical.
- Autonomous Operation: AI-driven hydraulic systems could lead to more autonomous operations, particularly in industries like mining, construction, and agriculture. Autonomous machines with hydraulic systems would be able to operate with minimal human intervention, increasing productivity and safety in hazardous or difficult environments.
A Bright Future for Hydraulic Technology
The future of hydraulic technology is poised to be shaped by innovation, with new advancements in automation, energy efficiency, miniaturization, and hybrid systems paving the way for even greater capabilities. As industries continue to demand more efficient, powerful, and environmentally friendly solutions, hydraulic systems will evolve to meet these needs, ensuring their relevance in both current and emerging applications. The combination of hydraulics with cutting-edge technologies such as AI, IoT, and renewable energy sources promises to unlock new potentials for this powerful and versatile engineering solution.
Conclusion
Hydraulic systems are indispensable in modern engineering, offering unparalleled strength, precision, and efficiency across a wide array of applications. From the heavy machinery that powers construction sites to the sophisticated aerospace technologies that rely on hydraulics for precise control, these systems continue to play a critical role in shaping industries and technologies worldwide. Understanding the basic principles, components, and applications of hydraulic systems provides valuable insights into their versatility and importance.
As we've explored throughout this article, hydraulic systems have significant advantages, including their ability to generate high force in compact spaces, provide precise control, and perform in challenging environments. They are particularly suited for heavy-duty applications that demand high power density, such as construction, agriculture, and manufacturing. However, hydraulic systems are not without their challenges, including the need for proper fluid maintenance, potential for leaks, and environmental concerns.
Looking to the future, hydraulic technology is evolving rapidly. Innovations in smart hydraulics, automation, and energy efficiency are transforming how hydraulic systems operate, making them more reliable, sustainable, and adaptable to the changing demands of industry. As new materials, digital control systems, and environmentally friendly fluids continue to emerge, the future of hydraulics holds exciting possibilities for even greater performance and precision.
In conclusion, hydraulic systems will remain a cornerstone of modern engineering and industry for years to come. Understanding their workings, maintenance needs, and potential for innovation is key to leveraging their full potential, whether for industrial applications, environmental sustainability, or cutting-edge technological advancements. By continuing to evolve and adapt, hydraulic systems will ensure that they remain an essential tool in achieving the precision and power required for tomorrow's challenges.
