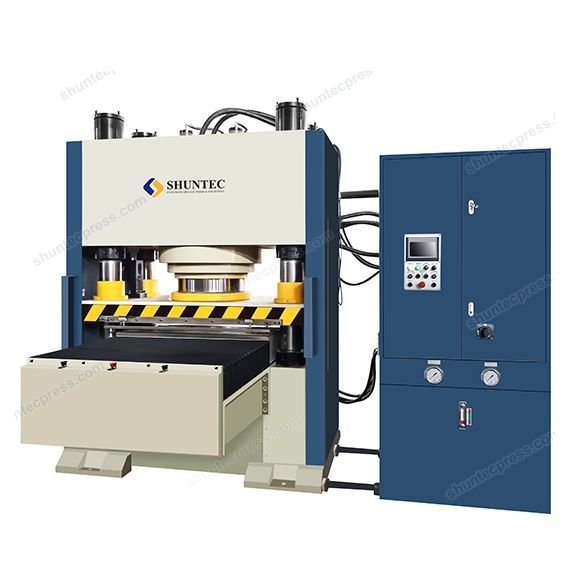

Jigsaw Puzzle Die Cutting Press
Shuntec-A01 PRO series jigsaw puzzle die cutting press is the industrial heavy-duty 4-post servo-hydraulic press machine. The presses are ideal for die-cutting 500~2000 pieces of jigsaw puzzles with the perfect cutting results.
Have custom requirements? We can customize an Jigsaw Puzzle Die Cutting Press according to your needs. SHUNTEC’s Jigsaw Puzzle Die Cutting Press are designed for high performance and reliability, offering comprehensive support from design to after-sales service.
We ensure the safe and efficient transportation of our custom hydraulic presses, taking into account their size, weight, and sensitivity.
Our team coordinates with trusted logistics partners to handle every detail, from packing and securing the equipment to international shipping and delivery.
Each press is carefully packaged to prevent damage during transit, and we offer tracking and support throughout the shipping process, ensuring timely and secure arrival at your designated location.
- Machine Video
- Machine Highlight
- Machine Specifications
- Machine Options
Shuntec is a professional jigsaw puzzle cutting machine manufacturer based in China for years. The Shuntec-A01 PRO series jigsaw puzzle die cutting press machines are the servo motor-driven hydraulic press integrated with the precision pressure and position transducer for closed-loop control. All the pressure, stroke, and speed are freely adjustable on HMI. With super rigidity of 4-post frame structure and high precision bed-to-ram parallelism, our jigsaw puzzle cutting press machines are helping our customers to achieve quality die-cutting parts across the globe.
Compared to the conventional hydraulic press, the advances of the jigsaw puzzle servo-hydraulic cutting press machine are obvious:
• First of all, much faster approaching, pressing, and return speed
• Secondly, all speeds are adjustable during the whole stroke
• Furthermore, pressure repeat accuracy: ±1%
• 30%~60% lower energy consumption
• Much less noise level
• All parameters programmable on the central color touchscreen
• Finally, the higher degree of reliability and less need for maintenance during the entire lifetime
Product Datas
| Applicable Industries: | Industrial jigsaw puzzle die cutting,
500 pieces jigsaw puzzle die cutting, 1000 pieces jigsaw puzzle die cutting, 2000 pieces jigsaw puzzle die cutting |
Certification: | CE/UL/ISO |
| power Supply: | 380V/220V/415V/480V
optional |
warranty: | 18 months |
| Customizable: | Highly customized to your requirements | Aftersales Service: | Field installation, maintenance,
and repair service (only China), Commissioning and training, Online support, Free spare parts, Video technical support |
| Production Lead-time: | About 48~58 workdays | Payment Term: | T/T |
| Packing: | Wooden package suitable
for sea transport |
Delivery Term: | EXW, FOB,CFR,CIF,DDU |
Technical Parameters
| Description | Shuntec-A01 PRO 600 Ton | Shuntec-A01 PRO 800 Ton | Shuntec-A01 PRO 1000 Ton | Shuntec-A01 PRO 1200 Ton |
| Structure | 4-post press | 4-post press | 4-post press | 4-post press |
| Application | 500~1000 pieces jigsaw puzzle die cutting | 500~1000 pieces jigsaw puzzle die cutting | 1000~1500 pieces jigsaw puzzle die cutting | 1500~2000 pieces jigsaw puzzle die cutting |
| Main Cylinder Pressure | 25 Mpa | 25 Mpa | 25 Mpa | 25 Mpa |
| Main Cylinder Force | 6000 KN | 8000 KN | 10000 KN | 12000 KN |
| Main Cylinder Stroke | 200 mm | 250 mm | 300 mm | 300 mm |
| Max. Daylight | 200 mm | 250 mm | 300 mm | 300 mm |
| Bed Table | 850*800 mm | 850*800 mm | 1250*1000 mm | 1250*1000 mm |
| Parallelism Between Platens | ±0.04 mm | ±0.04 mm | ±0.04 mm | ±0.04 mm |
| Flatness Of Platens | ±0.025 mm | ±0.025 mm | ±0.025 mm | ±0.025 mm |
| Closing Speed | 200 mm/s | 200 mm/s | 175 mm/s | 130 mm/s |
| Slow Pressing Speed | 10~25 mm/s | 10~25 mm/s | 10~15 mm/s | 10~15 mm/s |
| Return Speed | 220 mm/s | 200 mm/s | 150 mm/s | 150 mm/s |
| Motor | 14 KW | 17.5 KW | 22 KW | 27 KW |
| Power Supply | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ |
• Shuttle table, which can move in and out of the cutting area. Convenient for loading and unloading puzzle boards
• Double-side shuttle table to increase jigsaw puzzle die cutting efficiency
• Interlocked, hinged guards on left-right sides
• Pneumatic safety rachet
• Automatic tie bar lubrication
• Top-mounted hydraulics
• Portable operator console
• Air blast valve with timer and air nozzles
• Dual-side (front-rear side) safety photoelectric light curtains
• Portable operator console
• Air blast valve with timer and air nozzles
• Dual-side (front-rear side) safety photoelectric light curtains
